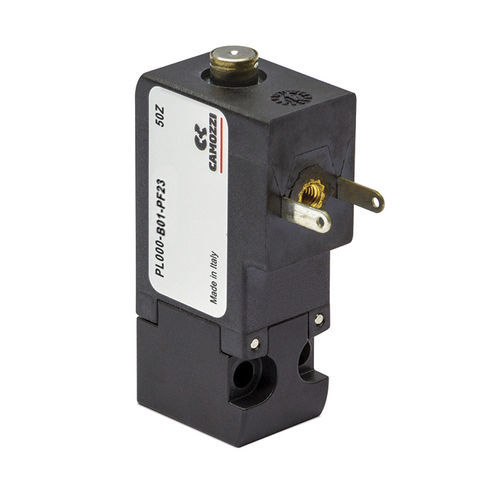

3/2 vías - Normalmente Cerrada (NC).
Las electroválvulas de mando directo Serie PL están disponibles en la versión normalmente cerrada (NC) y pueden ser montadas en bases individuales o en colectores.
Nota: Todas las electroválvulas de la Serie PL son basicamente en corriente continua.
Para operar en coriente alterna en la misma tensión, las electroválvulas necesitan usar el conector Mod. 125-900.
CARACTERÍSTICAS TÉCNICAS -
Function
2/2 NO - 3/2 NC - 3/2 NO - 3/2 UNI
Operation
direct acting poppet type
Pneumatic connections
on subbase
Orifice diameter
0.8 ... 1.6 mm
Flow efficient kv (l/min)
0.30 ... 0.62
Operating pressure
0 ÷ 3.5 ... 10 bar
Operating temperature
0 ÷ 50 °C (FKM) / -50 ÷ 50 °C (low temperature NBR on demand)
Media
filtered air, class 5.4.4 according to ISO 8573-1 (max oil viscosity 32 cSt), inert gas
Response time (ISO 12238)
ON <10 ms - OFF <15 ms
Installation
mono/bistable - PBT 3/2 versions only in any position
MATERIALES EN CONTACTO CON EL FLUIDO -
Body
brass - PBT - PPS
Seals
FKM - NBR - EPDM (on demand)
Internal parts
brass - stainless steel
CARACTERÍSTICAS ELECTRICAS -
Voltage
6 ... 110 V DC - other voltages on demand
Voltage tolerance
±10%
Power consumption
1.2 ... 2.7 W
Duty cycle
ED 100%
Electrical connection
industrial standard connector (9.4 mm)
Protection class
IP65 with connector
