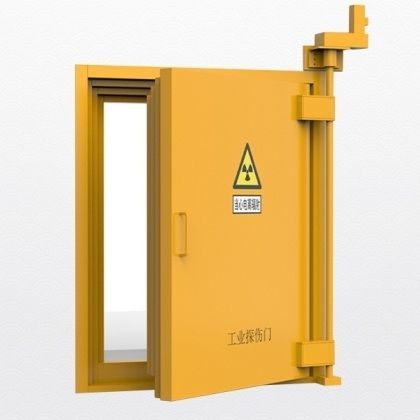

Puerta de protección radiológica

con blindajede protección contra los rayos Xhermética

Product Introduction
The shielding design should fully consider the direction and range of exposure to the useful radiation beam, the operational load of the device, and outdoor conditions. The walls in the direction of the useful beam projection should be designed according to the primary shielding requirements, while those in other directions should be designed according to the requirements for leakage and scattered radiation shielding.

Product Performance

• The door surface can be treated with sandblasting and fluorocarbon coating, and the motor shall meet the IP54 dustproof and waterproof rating.
• Door integrity: The shielding materials shall be continuous and intact. The lead sheet inside the door body shall be tightly fitted to the frame to prevent radiation leakage caused by looseness or gaps.
• Process: 30mm Pb + 120mm boron-containing polyethylene paraffin.
• Material: Door panel: 1.0 mm thick; Door body: 10 mm Q235 steel plate.
• Motor: Adopts a brand-name motor, equipped with high-load-bearing rails and cover plates.
• Protection: Equipped with a special anti-fingerprint mirror finish belt for radiation protection.
• Color: 304 anti-fingerprint stainless steel or AkzoNobel electrostatic spraying sheet.
• Frame requirement: The frame is supported by No.24 channel steel.

Technical Parameters
Technical parameter drawings and illustrations are provided in the product technical materials and depict shielding layer structure and dimensional details.

Application Fields

• Department of Radiology：Comprehensive imaging diagnosis and interventional therapy using X-rays, gamma rays and other radiation to produce images of internal structures, enabling evaluation of anatomy, function and pathological lesions.
• Department of Radiation Oncology：Localized therapeutic modality using ionizing radiation (including X-rays, electron beams, proton beams and isotopic emissions) for cancer treatment.
• Department of Nuclear Medicine：Uses nuclear science technologies for diagnosis and treatment; integrates imaging, therapeutic services, research and teaching.

Caractéristiques / spécifications techniques

• Shielding composition: 30 mm lead (Pb) layer + 120 mm boron-containing polyethylene paraffin layer.
• Door panel thickness: 1.0 mm.
• Door body material: 10 mm Q235 steel plate.
• Surface treatment: sandblasting and fluorocarbon coating (optionally 304 anti-fingerprint stainless steel or electrostatic spray finish).
• Motor standard: IP54 dustproof and waterproof rating; brand-name motor with high-load-bearing rails and cover plates.
• Frame support: No.24 channel steel.
• Integrity requirement: continuous, intact shielding materials; lead sheet tightly fitted to frame to avoid gaps and leakage.
• Protection feature: special anti-fingerprint mirror finish belt for radiation protection.
