Registrador de datos de temperatura DST micro-T

de esterilizaciónde trazabilidadpara control de calidad

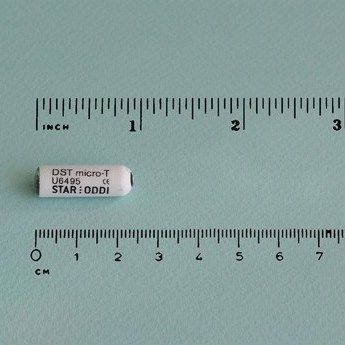

Product Details Small size: This tiny logger weighs only 3.3 g and is 25.4 mm long and 8.3 mm wide. Applications: DST temperature loggers are used in any environment where accurate, traceable measurements are required such as in: Cold chain monitoring Regulatory compliance and quality control Storage monitoring Logistics monitoring Guaranteed accuracy and performance: All loggers are delivered with calibration certificates. Each logger is calibrated to specifications using test equipment traceable to the International System of Units (SI), through a National Metrological Institute (Netherlands: RvA K013). Accuracy is guaranteed to +/- 0.06°C and performance for one year after purchase. Traceability in cold chain monitoring and storage: Every measurement has a timestamp as the logger synchronizes its internal clock with the date and time on the computer being used. Each logger has an electronic serial number as well as an external serial number on the housing for identification and traceability. Leak proof housing: The logger is hermetically sealed in a leak proof housing made of carefully chosen biocompatible ceramic material. Key Features Small size - only 3.3 g, 25.4mm x 8.3mm Guaranteed accuracy for one year – individually calibrated with certificate Traceability in cold chain monitoring and storage Leak proof housing Using the logger Simple in use, from setup to data retrieval: The logger and the accompanying items are designed for ease of use throughout the research process, from setting up the logger, inserting it in the container, to retrieving and analysing the data. The logger is supported by the Mercury software and a Communication Box which have to be purchased with the first order. Programming the logger: To start the logger for measurements it is placed into a Communication Box and connected to the software. The Communication Box serves as an interface between the logger and a PC computer. In the application software, the user sets the start time, start date and sampling interval before starting the recorder. Single or multiple intervals: There are two modes for sampling, either at a single interval throughout the period, or multiple intervals. When choosing multiple interval programming it is possible to define up to seven different intervals and number of measurements for each interval. Shifting between wide and narrow intervals can help in extending the measuring period due to memory limitations and have more frequent measurements during certain time periods. Memory and battery life calculations: The software automatically calculates when memory fills up based on certain interval settings, making it easier for the user to decide how to program the logger. Estimated battery consumption during that time period is also calculated. Uploading the Data: After recovering the logger, the logger is inserted into the communication box and the recorded data is uploaded to the software. The results are displayed both in graphic and tabular form and the data can be exported to other programs. Low energy consumption: Due to the low energy consumption circuitry design the battery life is long, but actual lifetime depends on usage and sampling interval used. After data retrieval the logger can be sterilized and reused, as long as the batteries last. Battery life estimation is always reported upon connection with the logger and the user can get an estimate of how long the logger memory and battery will last in a planned research. Hermetically sealed: All Star-Oddi loggers are hermetically sealed and leak proof. Therefore the batteries are not replaceable. Sterilization: The loggers can be sterilized and reused for as long as the battery lasts. As Star-Oddi’s loggers contain electronics not all sterilization methods are suitable; this includes methods where temperature exceeds 60°C. Specifications SensorTemperature Size (Diameter x Length)8.3mm x 25.4mm Housing MaterialAlumina (Ceramic) Weight (in Air/in Water)3.3g/1.9g Data Resolution16 bits Temperature Range-1 to +40°C (30.2°F to 104°F)* Temperature Resolution 0.003°C (0.0054°F) Temperature Accuracy+/- 0.06°C (+/- 0.11°F) Temperature Response TimeTime constant (63%) reached in 8 sec. Memory TypeNon-volatile EEPROM Memory Capacity65,535 measurements Measurement IntervalUser specified in second(s), minute(s), or hour(s) Minimum Measurement Interval1 second Multiple Intervals OptionUp to 7 different intervals Data Retention25 years ClockReal time clock. Accuracy +/-1 min/month. CommunicationsCommunication Box, wireless transmission when DST is placed in the box. Connection to PC: USB cable. Attachment Hole0.5 mm (diameter) Battery Life28 months** Replaceable BatteryNo *Outside ranges available upon request.**For sampling interval of 10 min.Warranty: 12 months.Specifications may change without notice.
