3/2 vías - Normalmente Cerrada (NC), Normalmente Abierta (NO)

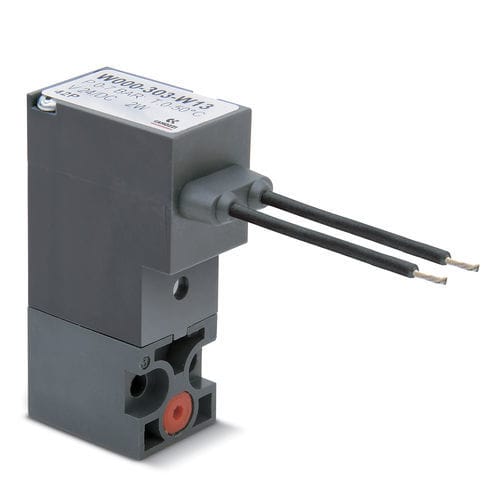

Las electroválvulas de mando directo Serie W están disponibles en 3/2 vías, ya sea normalmente cerrada (NC) y normalmente abierta (NO).
Ambas versiones se pueden montar en bases individuales o colectores y están equipadas
con intervención manual para facilitar la configuración de los sistemas.
CARACTERÍSTICAS TÉCNICAS -
Function
3/2 NC - 3/2 NO
Operation
direct acting poppet type
Pneumatic connections
on subbase with ISO 15218 interface
Orifice diameter
0.8 … 1.5 mm
Flow efficient kv (l/min)
0.21 … 0.54
Operating pressure
0 ÷ 5 … 10 bar
Operating temperature
0 ÷ 50 °C
Media
filtered air, class 5.4.4 according to ISO 8573-1 (max oil viscosity 32 cSt), inert gas
Response time (ISO 12238)
ON <10 ms - OFF <15 ms
Installation
monostable in any position
MATERIALES EN CONTACTO CON EL FLUIDO -
Body
PBT
Seals
PU - NBR - FKM - EPDM
Internal parts
stainless steel
CARACTERÍSTICAS ELECTRICAS -
Voltage
12 ... 48 V DC - other voltages on demand
Voltage tolerance
±10%
Power consumption
2 W - 1 W (24 V DC only)
Duty cycle
ED 100%
Electrical connection
connector DIN EN 175 301-803-C (8 mm) - 300 mm flying leads
Protection class
IP65 with connector
