Registrador de datos de temperatura DST micro-TD

de presiónde profundidadpara experimentación con animales

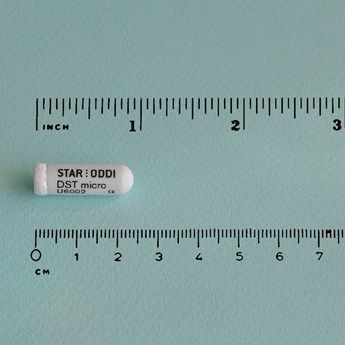

Product Details: The DST micro-TD is the world's smallest temperature and depth logging archival fish tag, ideal for very small fish or marine animals for long-term behaviour and migration studies. Developed in cooperation with fish biologists, it is suitable for long-term studies of small fish, smolt, and marine animals due to its high reliability and long lifetime despite its small size (25.4 mm x 8.3 mm, 3.3 g in air). Designed for migration, feeding, and dive behavioral studies of small fish, seabirds, and marine animals. Records time series data, enabling scientists to gain valuable information on migration routes and behavioural patterns over long periods. Can be implanted or attached externally using tag holder kits. Stores up to 87,168 measurements, allowing for data storage over 2.5 years at a 30-minute interval. Flexible interval setup: multiple intervals can be set for measuring depth and temperature. Depth calibration options: up to 150 m, 300 m, or 1000 m (the shallower the range, the better the resolution and accuracy). Customizable text on housing for recapture purposes. Optional yellow plastic tube (spaghetti tag) for easier spotting of tagged fish. Using the Logger: Supported by SeaStar software and a Communication Box (required for setup and data retrieval). Logger is programmed via USB connection to a PC, with user-defined start time, date, and sampling intervals. Supports single or multiple sampling intervals (up to 7 different intervals). Software calculates memory and battery life based on interval settings. After recapture, data is uploaded to the software and can be exported for further analysis. Battery life can last several years depending on usage and sampling interval. Accessories: Communication Box: Interface for connecting DST to a PC for setup and data retrieval. SeaStar software: Required for operating the DST, displaying data in graph and table formats. Plate Holder Kit: For external attachment, includes wire fasteners, plastic holder plate, and silicone pads for animal comfort. Capsule Holder Kit: Plastic capsule with holes for water flow, includes wire harness and silicone pads, suitable for all logger sizes. Floating Device: Available in two sizes, for internal or external tagging, can be coated for biocompatibility or painted for visibility. Technical Specifications: Sensors: Temperature and pressure (depth) Size (Diameter x Length): 8.3mm x 25.4mm Housing Material: Biocompatible alumina (ceramic) Weight (in Air/in Water): 3.3g/1.9g Data Resolution: 12 bits Temperature Range: -2 to +40°C (28°F to 104°F)* Temperature Resolution: 0.032°C (0.058°F) Temperature Accuracy: +/- 0.2°C (+/- 0.36°F) Temperature Response Time: Time constant (63%) reached in 8 sec. Standard Depth Ranges: 1m-150m, 1m-300m, 5m-1000m Depth Resolution: 0.08% of selected range Depth Accuracy: +/- 1.5% of selected range Depth Response Time: Immediate Memory Type: Non-volatile EEPROM Memory Capacity: 87,906 measurements** Measurement Interval: User specified in second(s), minute(s), or hour(s) Minimum Measurement Interval: 1 second Multiple Intervals Option: Up to 7 different intervals Measurement Options (Primary/Secondary): Temperature as primary, pressure/depth as primary Data Retention: 25 years Clock: Real time clock. Accuracy +/-1 min/month. Communications: Communication Box, wireless transmission when DST sits in the box. Connection to PC: USB cable. Attachment Hole: 0.5 mm (diameter) Battery Life: 28 months*** Replaceable Battery: No *Other ranges available upon request.**Divided between the two parameters.***For sampling interval of 10 minutes, temperature and pressure recorded simultaneously.Warranty: 12 months.Specifications may change without notice.
