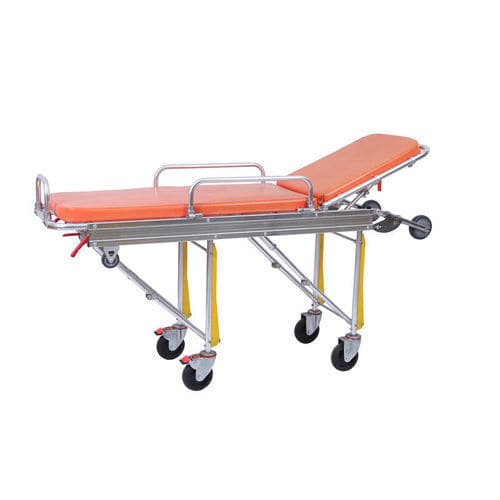

Product Overview
- The main material is high-strength aluminum alloy.
- Equipped with adjustable aluminum alloy side rails and two safety belts.
- The stretcher legs fold automatically when loading into an ambulance; the folding mechanism of the leg part can be controlled by handles on both sides, requiring only one medical staff member to push the stretcher into the ambulance. Ensure it is secured with accessories when loading into the ambulance to prevent movement during transport.
- Adjustable backrest angle.
- The mattress is made of wear-resistant mesh fabric, 5 cm thick, disposable welding, flame retardant, and waterproof.
- Equipped with a two-level adjustable IV stand, with a maximum adjustable length of 75 cm.
- Loading height: 64 cm.
- Wheel size: φ125 mm.
Technical Specifications
- Model: YHR-A2
- Features: High-low position, 5 cm mattress, two straps, vehicle locking device included, foldable side rails
- Material: Durable aluminum alloy
- Dimensions: 190×55×(25-92)cm
- Backrest: 0-75 degrees
- Capacity: Max. 160kg (350 LBS)
- Net Weight: 40kg
- Packing: 195×62×26 cm ; 1 pc/CTN
- Gross Weight: 45kg
Key Features / Technical Specifications
- Main material: High-strength aluminum alloy
- Adjustable aluminum alloy side rails
- Two safety belts
- Automatic folding legs for ambulance loading
- Adjustable backrest angle (0-75°)
- 5 cm thick, flame-retardant, waterproof mattress
- Two-level adjustable IV stand (max 75 cm)
- Loading height: 64 cm
- Wheel size: φ125 mm
- Dimensions: 190×55×(25-92)cm
- Maximum capacity: 160kg (350 LBS)
- Net weight: 40kg
- Packing: 195×62×26 cm ; 1 pc/CTN
- Gross weight: 45kg
