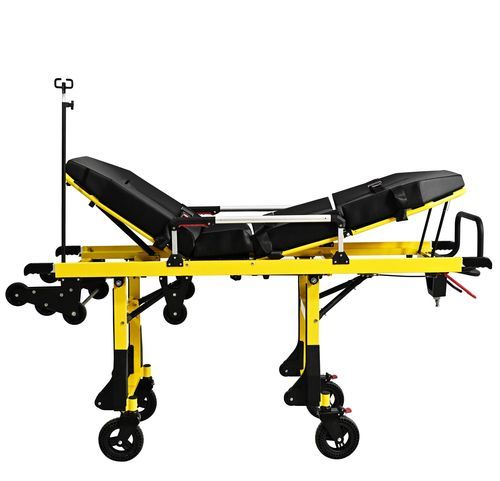

Carro camilla de transporte YHR-A12

de emergenciamanualplegable

Product Overview - The main material is high-strength aluminum alloy, hardened and surface treated. - The overall height of the stretcher can be adjusted in ≥3 levels, facilitating CPR maneuvers. - The height of the front legs can be adjusted in 2 levels and the rear legs in 3 levels. - The backrest is controlled by an air spring to adjust the angle; backrest angle: 0-88°; the legs are mechanically supported to change position to 0° or 15°. - There are three wheels on the loading part, allowing a wider range of height for boarding. - The side rail is made of aluminum and plastic; the stretcher has two safety belts. - The front universal wheels use an elastic latch to lock, which can be locked for straight movement or universal mode as needed; rear universal wheel with brake. - Only one medical staff is required to push the stretcher into the ambulance. - The locking mechanism is controlled by handles; the stretcher must be fixed with the device when loading into the ambulance. - Loading height: 580-690 mm; wheel size: Ø200 mm. - The stretcher mattress is made of PVC material with a concave shape, thickness: 10 cm. The mat features high-frequency seamless welding and is waterproof, easy to clean. - It has a 2-level IV stand; stretcher fixing device. - Optional accessories: oxygen tank holder. Technical Specifications - Name: Ambulance stretcher - Model: YHR-A12 - Features: Overall height adjustable - Four universal wheels. The front wheels can be locked for steering - Height adjustable for CPR - Height of three wheels: 585 mm, 640 mm, 685 mm - Adjustable structure side rail, height: 17.5 cm - Two safety belts - Three-point simultaneous locking device - Four retractable handles at both ends - Material: High-strength aluminum alloy, surface treated - Mattress: Waterproof U-shaped upper mattress, thickness 10 cm - Wheels: φ200 mm - High Position: 197x57.5x101 cm - Low Position: 197x57.5x47 cm - Backrest Angle: 0-90° - Leg Angle: 0° or 15° - N.W.: 51.5 kg - Load Capacity: Max. 200 kg (440 lbs) - Packing: 207x60x47 cm; 1 set/box - G.W.: 62 kg
