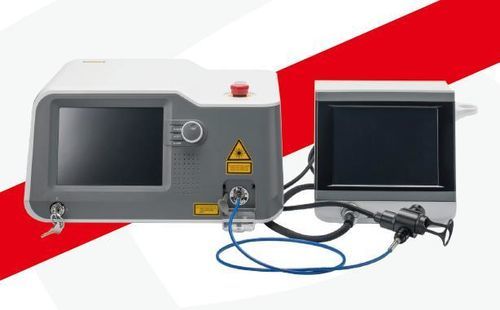

Láser para lesiones vasculares VELASII-8G

para lesiones pigmentariaspara el tratamiento de cicatricestriborato de litio

INTRODUCTION
Use high power semiconductor at 808nm to “pump” a crystal that produces light of 1064 nm. That 1064 nm light is then cast upon a duplicating LBO (lithium triborate) crystal to halve the wavelength and obtain green light at 532 nm. This system of wavelength conversion allows control of the green light output using very short pulses.

Powerful and effective

• 3W / 4W / 5W / 8W peak power options
• Very short, intense pulses
• Effective treatments with protection of the epidermis
• Very stable and reliable with long lifetime

Transportable and economic

• Easy-to-use design with intuitive menu
• Compact device with stable technology
• Transportation case for device and accessories
• Plug & play technology: no technician needed
• Low operating costs

Applications
Vascular Lesions

• Spider Veins
• Telangiectasia
• Neovascularization
• Rosacea
• Venous Lake
• Port-wine stains (PWS)
• Senile, Stellate and Cherry Angiomas

Pigmented Lesions

• Lentigines
• Dermatosis Papulosis Nigra
• Freckles
• Hyperkeratotic Lesions
• Civatte Poikiloderma
• Red Stretch Marks

Cutaneous Lesions

• Scars
• Verrucas
• Keratoses
• Inflammatory Acne

Caractéristiques / spécifications techniques

• Pump wavelength: 808 nm (high power semiconductor)
• Primary generated wavelength: 1064 nm (crystal output)
• Frequency-doubled output: 532 nm (via LBO lithium triborate crystal)
• Peak power options: 3 W, 4 W, 5 W, 8 W
• Pulse type: very short, intense pulses (allows precise control of green light output)
• Design: compact, transportable, includes transportation case
• User interface: intuitive menu, plug & play (no technician needed)
• Reliability: very stable, long lifetime
• Economy: low operating costs
